End Stage

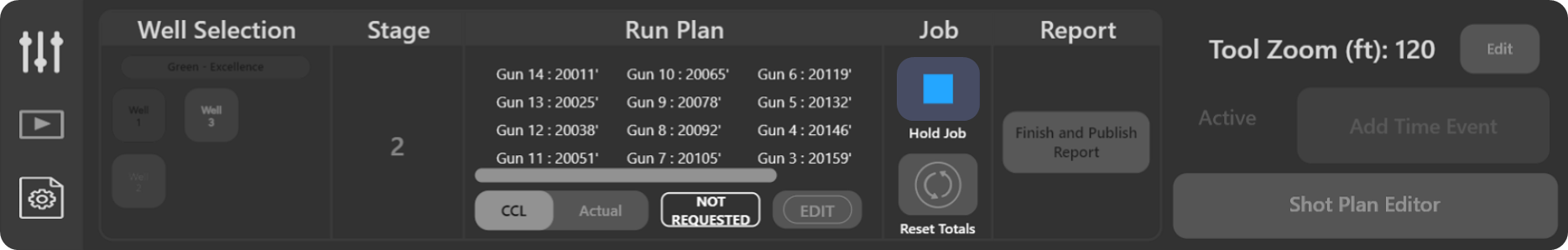

Press the Hold Job Button:

• Once the tool string is at surface, press the Hold Job button. This pauses the operation.

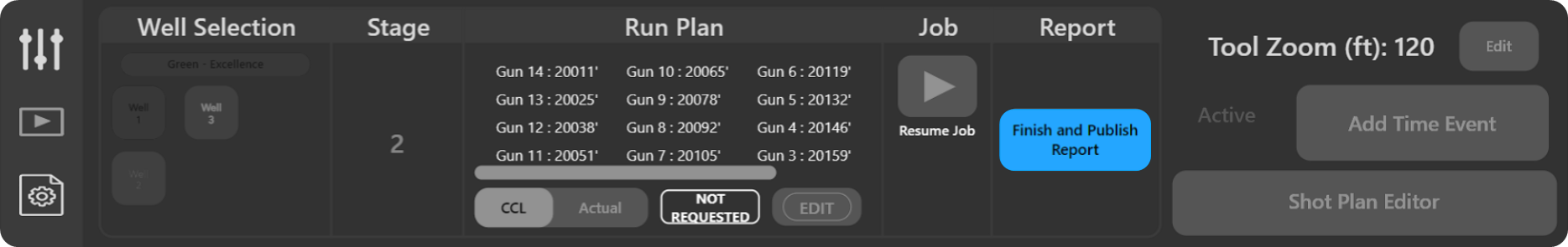

Press the Finish & Publish Report Button:

• After holding the job, press the Finish & Publish Report button.
• This step will trigger the finalization process for the stage, and you will be prompted to confirm the status of the run.

Confirm Stage Status:

• You will be asked to confirm the status of the stage:
  • All Shots Fired: If all perforations were successfully completed All Shots Fired.
  • Misfire or Misrun: If there were any operational issues or incomplete shots Misfire & Misrun.
• Select the appropriate status for the run.

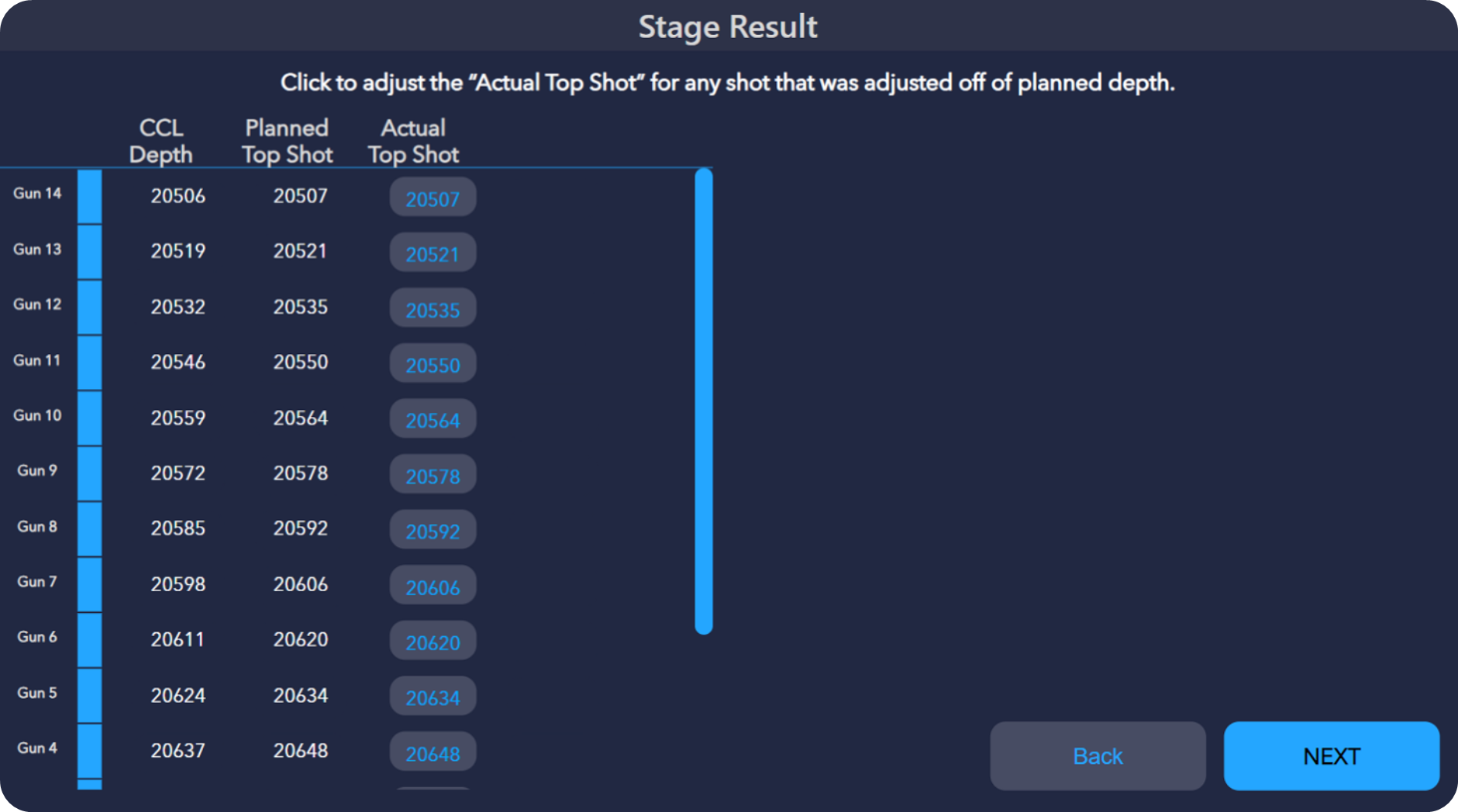

Verify Shot Depths:

• After confirming the stage status, review and verify the shot depths that were executed during the stage.
• Make any necessary adjustments or corrections to the shot depths.

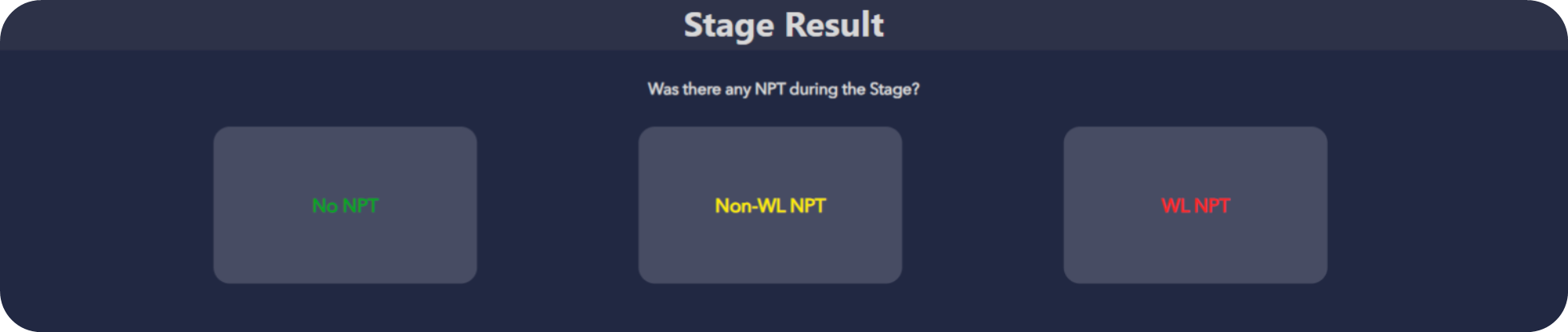

Complete Time Capture:

• If applicable, use the Time Capture feature to log any Non-Productive Time (NPT) or other timeline events during the stage.
• This will ensure accurate tracking of the operational time, Click Here to add NPT.

Publish the Report:

• Once all details are confirmed and reviewed, press Publish to finalize the report for the completed stage.
• The stage will then be completed. Data can be reviewed in the shot plan editor or by using the stage arrows to go back to review the plots.

By following these steps, you will successfully finish a stage in the newer version of pdVISION, ensuring that all data is captured and documented accurately.
