Petrix Setup

Created by David García-Ibañez, Modified on Sun, Apr 6 at 12:44 PM by David García-Ibañez

Petrix Computer configuration

1. Create RS232 or TCP/IP output channel:

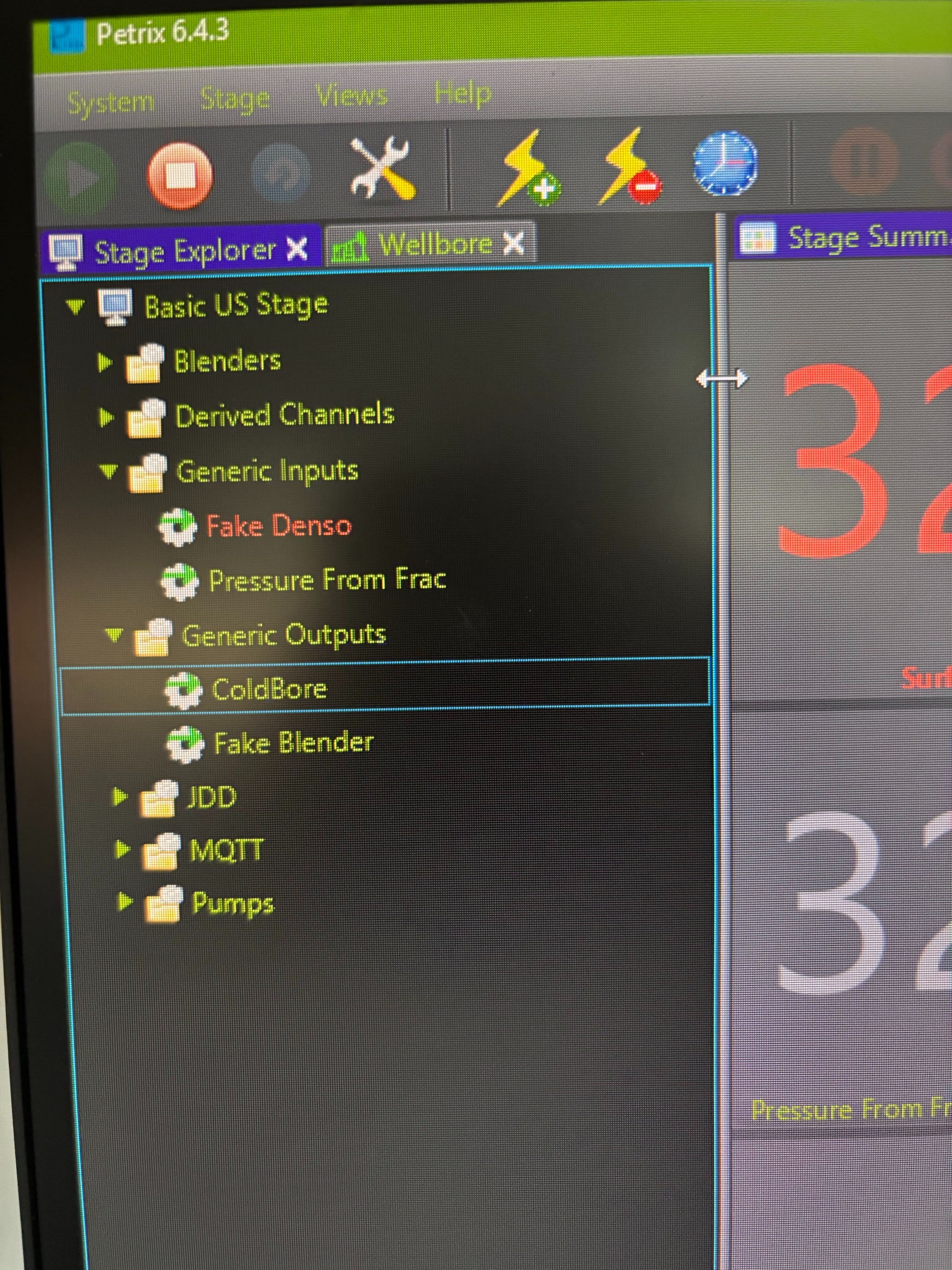

Locate the Stage Explorer on the left side of the screen.

Right click on Generic Outputs folder and select the output you want to create:

2A. Serial Configuration:

After selecting New RS232
Name the channel
Select the COM Port Number
Baud Rate: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
Delimiter: ,
End of line: \r\n

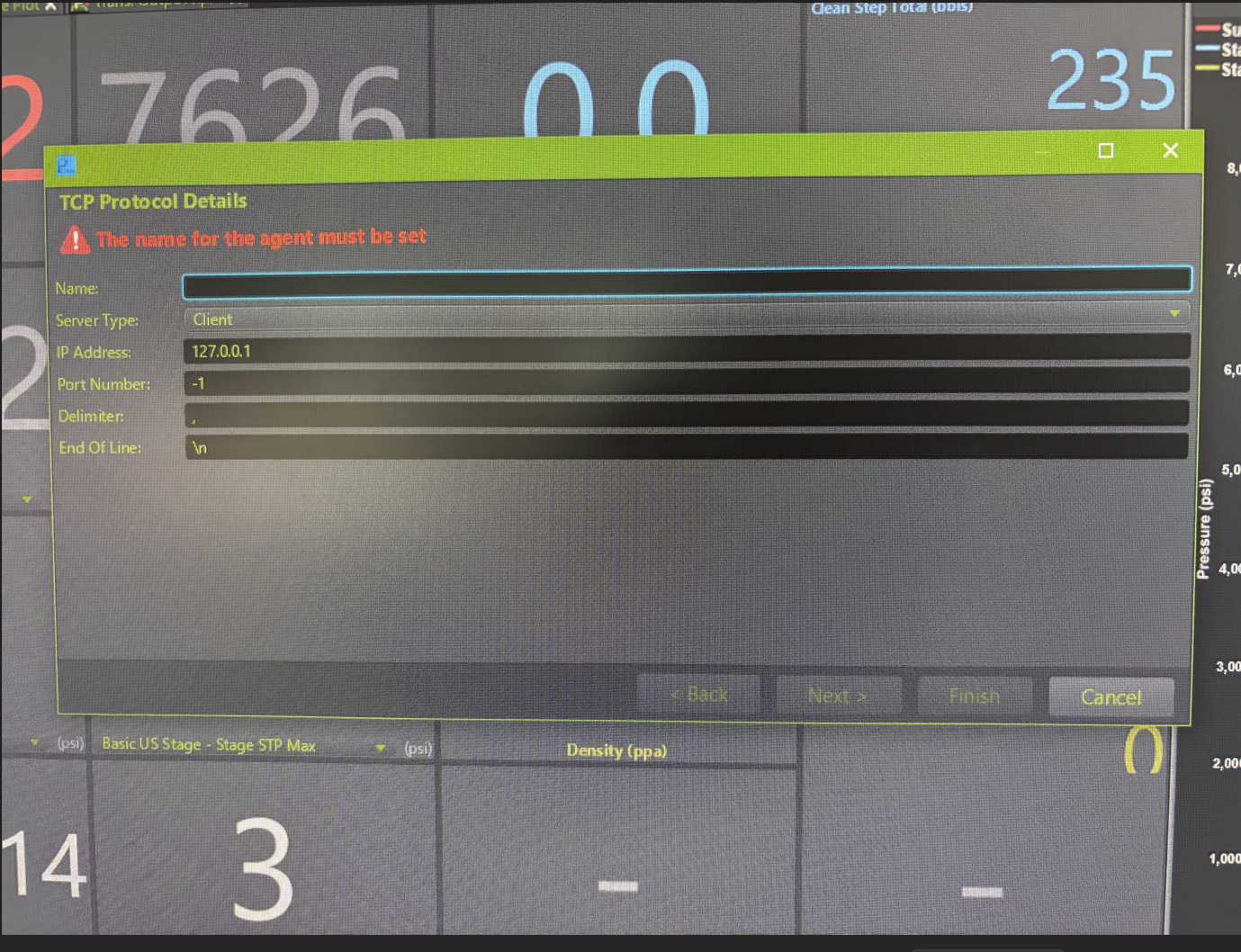

2B. TCP Configuration:

After selecting New TCP
Name the channel
Select the server type: Client (Pending to test)
IP Address: From Petrix Computer
Port Number: Assign a port
Delimiter: ,
End of line: \n

3. Select the channels and finish the output creation:
