All shots Fired

Follow these steps to finish a successful run.

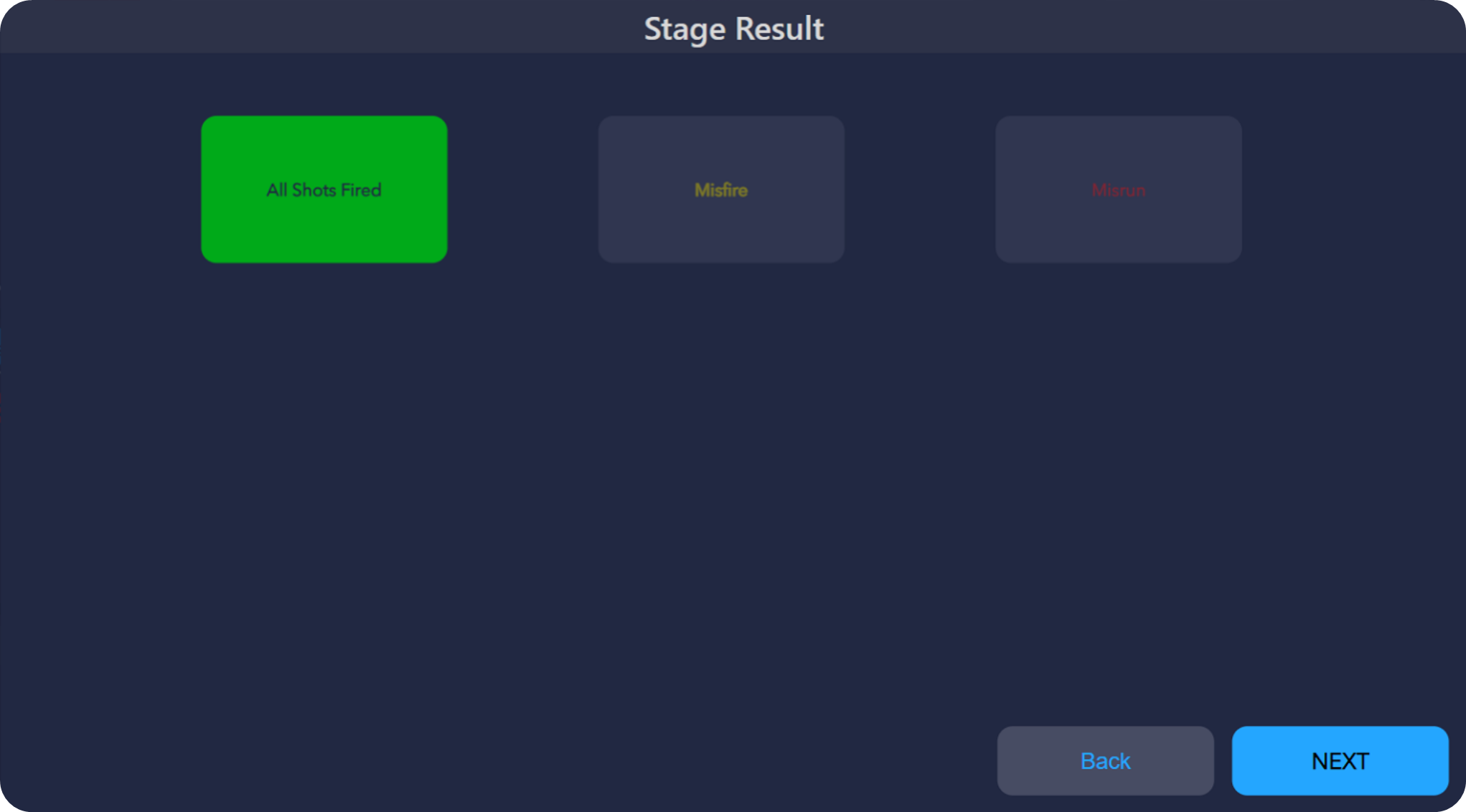

1. Select "All Shots Fired":

• You will be prompted to confirm the status of the stage. Select "All Shots Fired" if all perforations were completed successfully without any issues.
• This confirms that the stage was executed as planned.

2. Review and Verify Shot Depths:

• After selecting "All Shots Fired," review the shot depths executed during the stage. Ensure that all shot depths are accurate and match the planned depths.
• Make any necessary adjustments if required.

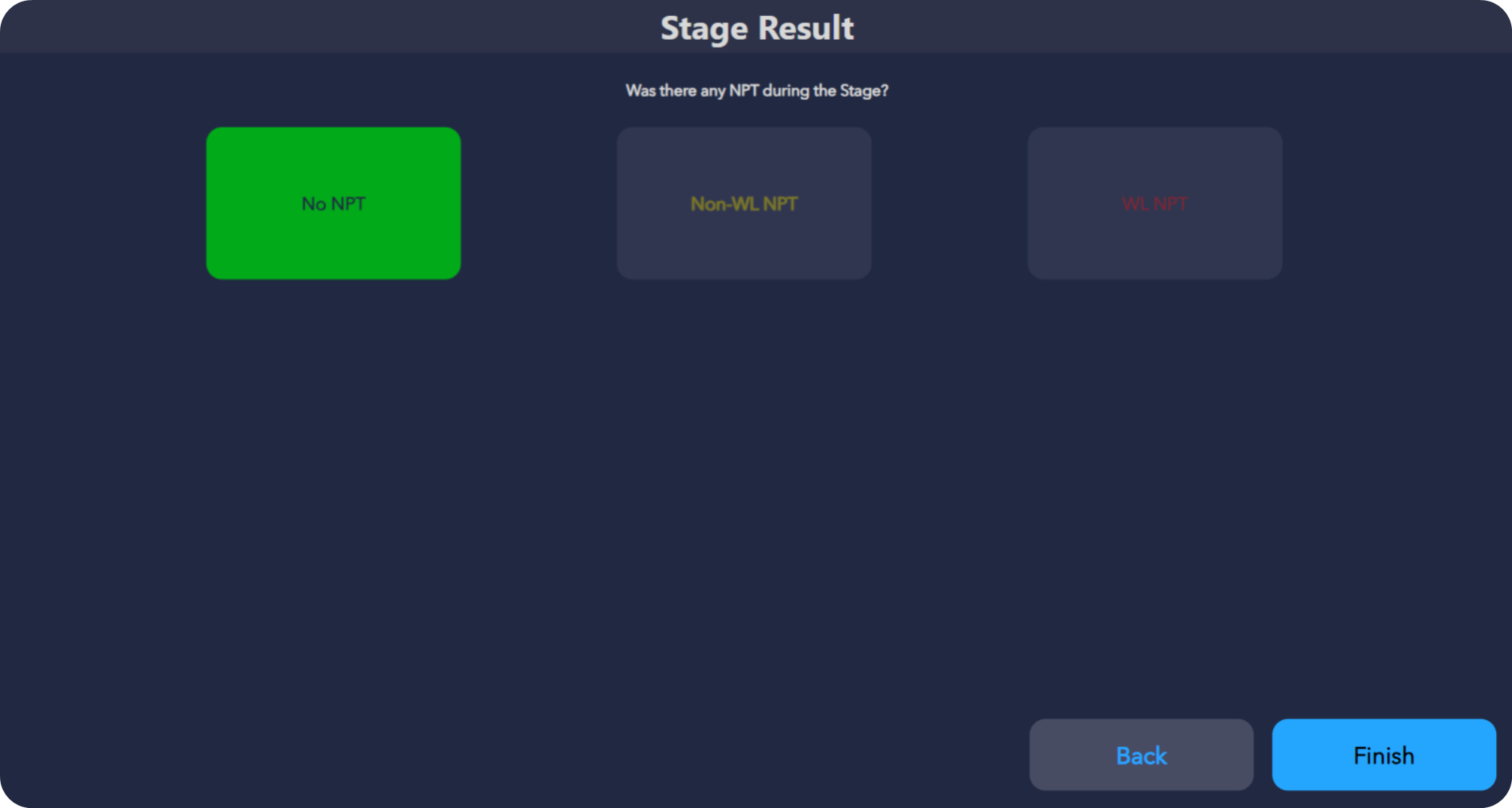

3. Complete Time Capture:

• If applicable, use the Time Capture feature to log any Non-Productive Time (NPT) or operational timeline events during the stage.
• Ensure that the operational timeline is accurately recorded.

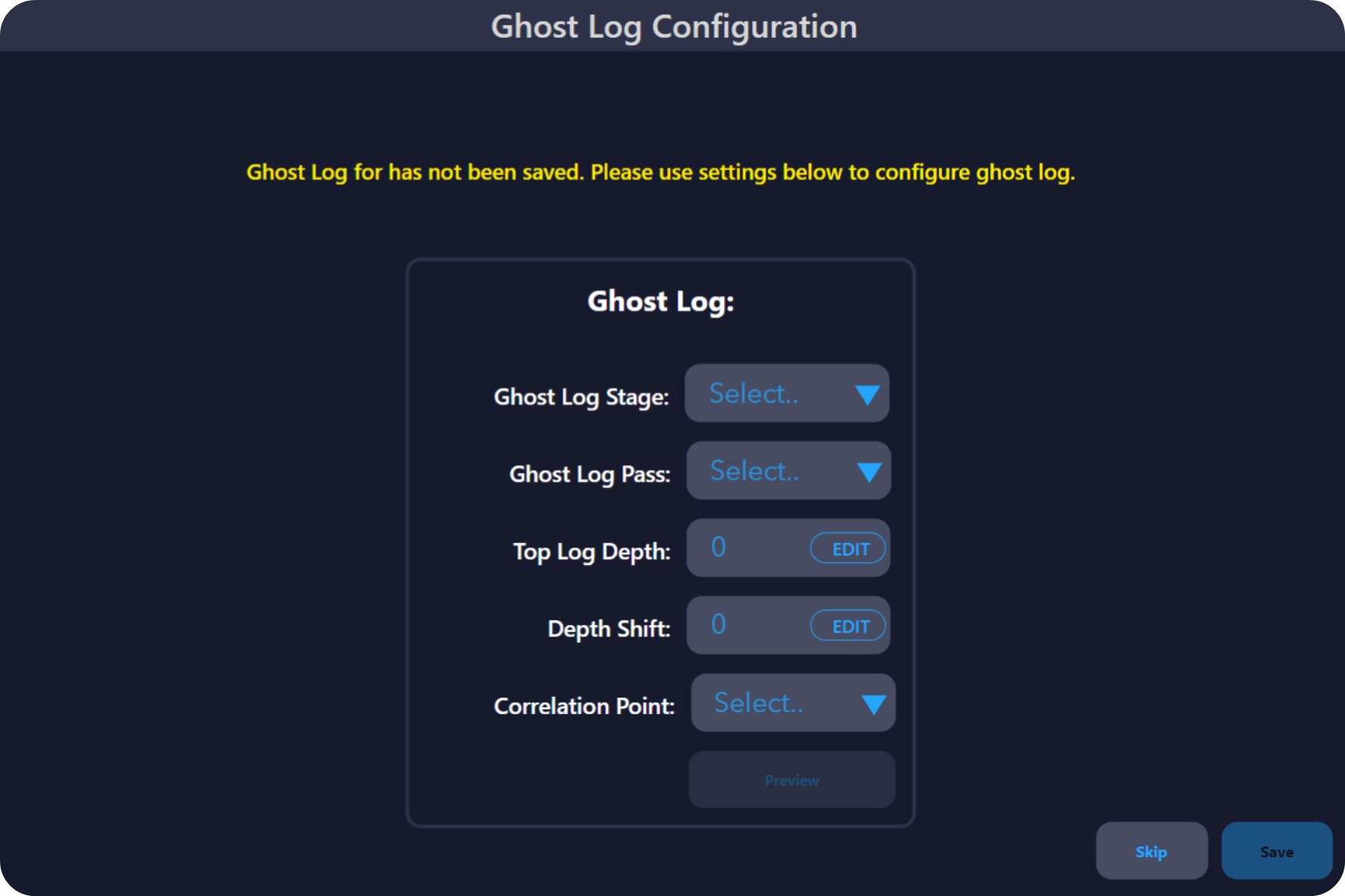

4. Configure the Ghost Log:

• After completing Time Capture, the Ghost Log Configuration window will appear.
• Select the appropriate Ghost Log Stage and Pass from the dropdown menus.
• Input the Top Log Depth and Depth Shift, ensuring the correct alignment with the wellbore.
• Choose the appropriate Correlation Point to align the ghost log with your recorded data.
• Preview the configuration, then press Save to finalize the Ghost Log setup.

5. Save and Publish the Report:

• Once all shot depths are verified and time capture is complete, press Save to finalize the report.
• The stage report will be made available, and any configured notifications will be sent to stakeholders.

By following these steps, you can successfully finish a stage in pdVISION with the All Shots Fired status, ensuring that all data is accurately captured and reported.
