MDT Configuration on Pumpdown Laptop

1. Check MDT Setup for Configured Files:

• Navigate to D:(Falcon-X.X.X) or (Eagle-X.X.X)\bin on the pumpdown laptop.

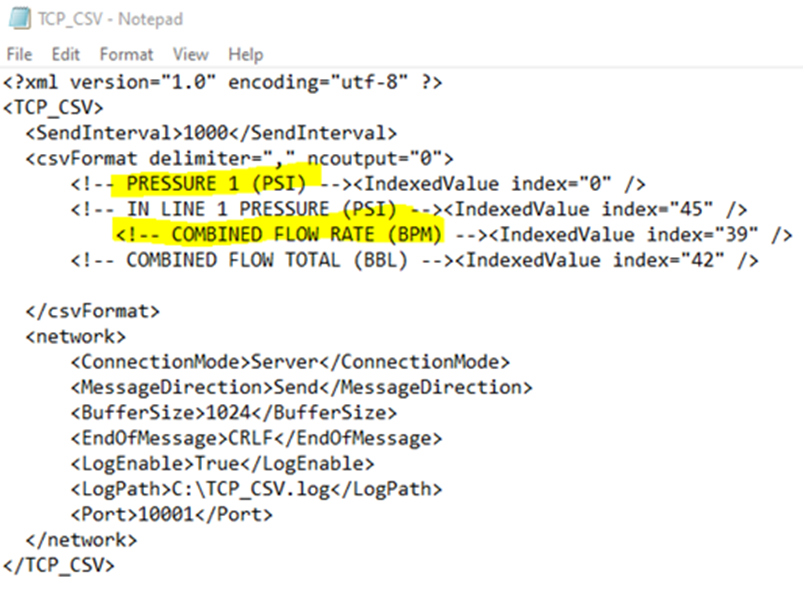

• Look for the TCP_CSV.xmlfile:
  • If present: Open it to verify the correct channels are set up (typically PRESSURE 1 and COMBINED FLOW RATE).
  • If not present, proceed to Step 2.

2. Verify Data Stream (Optional):

• Test the data stream using Putty (refer to Step 2.f).

3. Obtain TCP_CSV.xml from MDT Support (if needed):

• If remote support is available: Contact MDT Support via TeamViewer on the MDT computer.
• If no connectivity: Email the ProgramSettings.ini file (located in D:(Falcon-X.X.X) or (Eagle-X.X.X)\bin) to [email protected] and call 1-855-638-6384 to follow up.

4. Configure ProgramSettings.ini File:

• Backup the original ProgramSettings.ini in the bin folder.
• Place the received files in the bin folder, ensuring they are correctly named.
• In ProgramSettings.ini, under [TCP_CSV], ensure XMLPath=TCP_CSV.xml points to the correct directory (e.g., D:\Falcon-7.6.4\bin\TCP_CSV.xml).

5. Restart MDT Computer:

• Restart the MDT computer to apply changes.

6. Test Data Stream with Putty:

• Open Putty, select Telnet, and enter the IP address 127.0.0.1 with Port 10001.
• Ensure Falcon/Eagle software is running. If you see data, the stream is ready.

1. Configure Subnet Mask for External Devices:

   • Ensure external devices’ subnet masks match the PPC’s (typically 255.0.0.0).

Connecting Pumpdown Laptop to MaticAI/ZipVision

1. Connect MDT Laptop to DipoleWellsite Network:

• If WiFi is available: Connect to DipoleWellsite WiFi (password: DipoleDigitalWellsite).
• If WiFi is unavailable: Connect an Ethernet cablefrom the MDT laptop to the Dipole Router or Wireless AP LAN.
  • If no Ethernet port is available, use a USB to Ethernet adapter.

2. Identify IP Address of MDT Laptop:

• If connected over WiFi: Check the Devices list in Omada on DipoleServer (https://localhost:8043).
• Alternatively, on the MDT laptop, open cmd and run ipconfig /all to find the IP address.

3. Configure Dipole Pump Plugin on DipoleServer:

• Set the Dipole Pump Plugin to read from the MDT laptop’s IP address and Port 10001.
• Verify a data string appears in the plugin.

4. Map Parameter Index Values:

• Assign index values to the appropriate parameters in Dipole Pump Plugin.
• Live values should now be visible in MaticAI/ZipVision.

Safety Note: Back up existing configuration files before replacing them to prevent data loss or misconfiguration. Always verify IP addresses and COM port settings before connecting.
