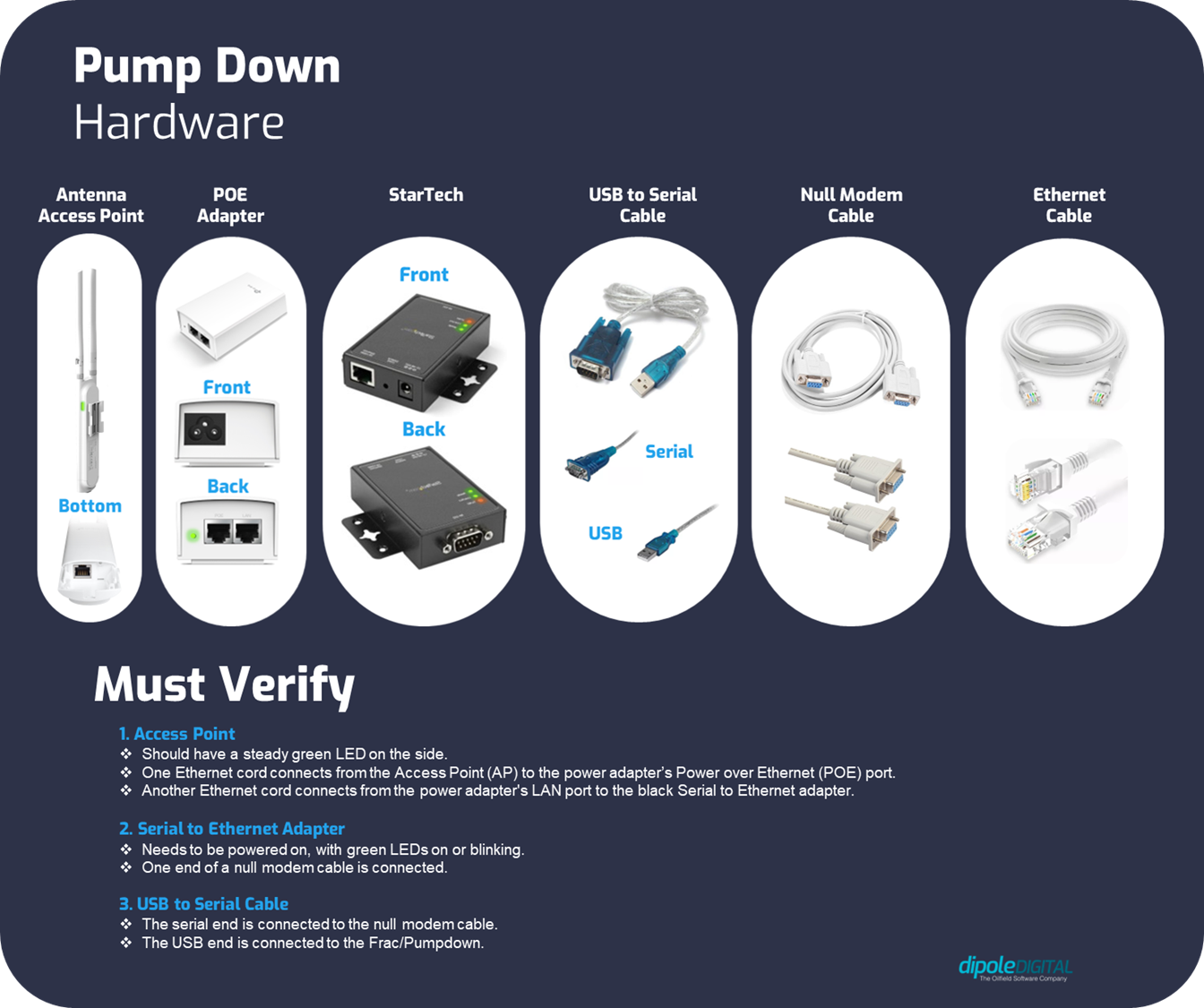

PumpDown Hardware

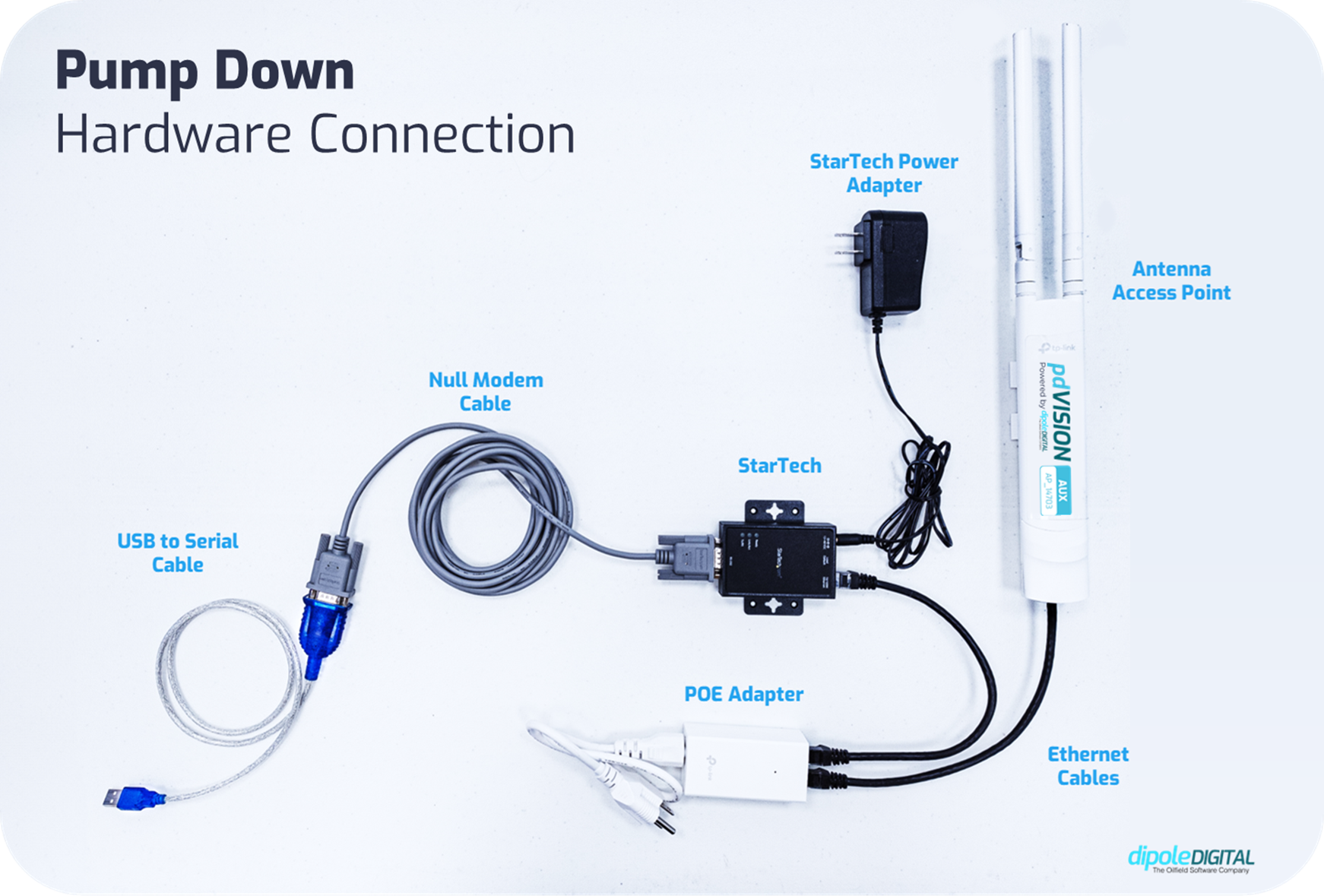

Connection Diagram
On the Pioneer - SCADA acquisition laptop
1. Double click MRL File2Serial icon on desktop.

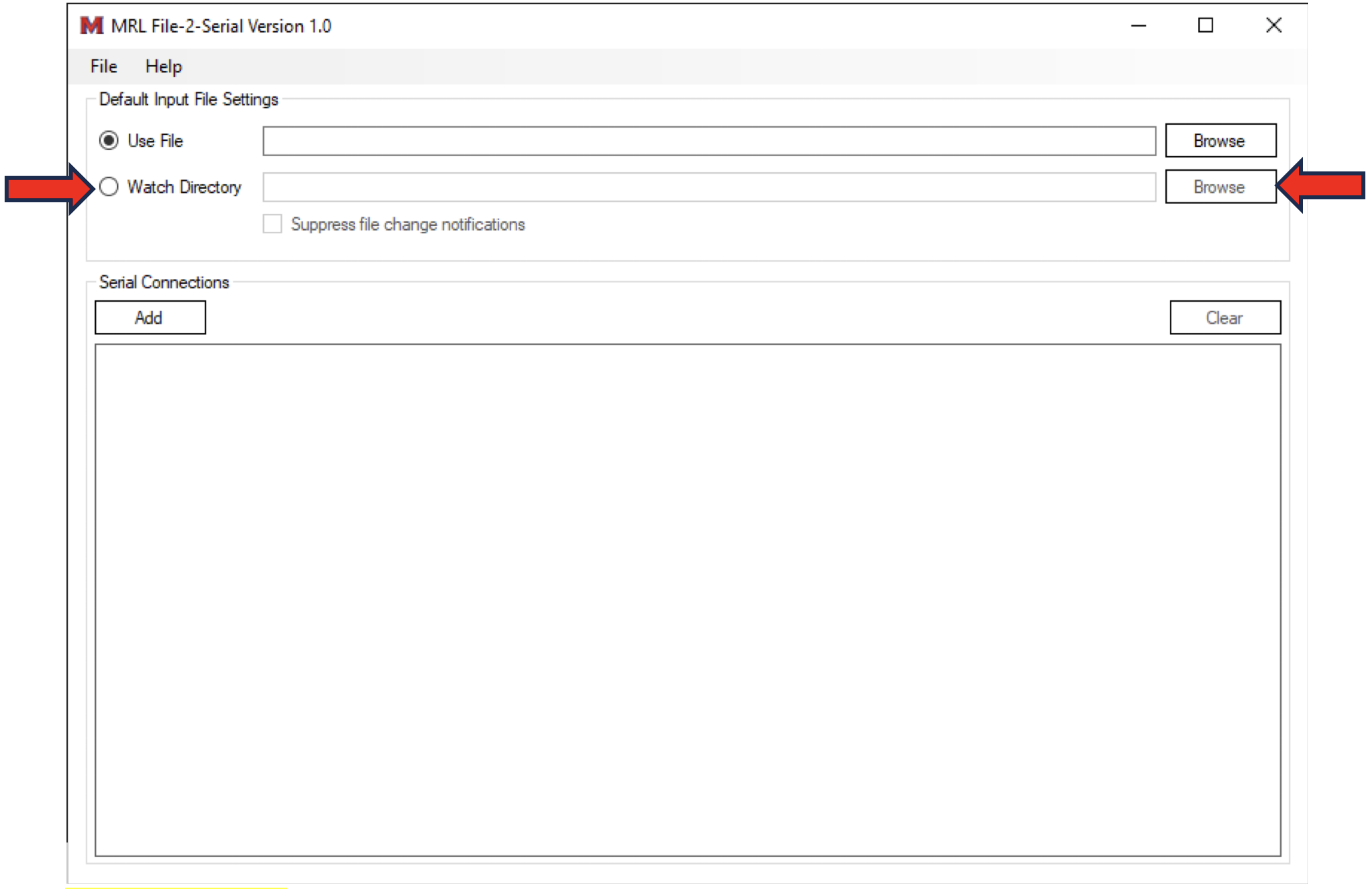

2. Select Watch Directory in the Default Input File Settings area of window.
3. Click Browse to select the folder that you are saving your Pioneer Data Logger file to.
4. Click on the box that says Suppress file change notifications.

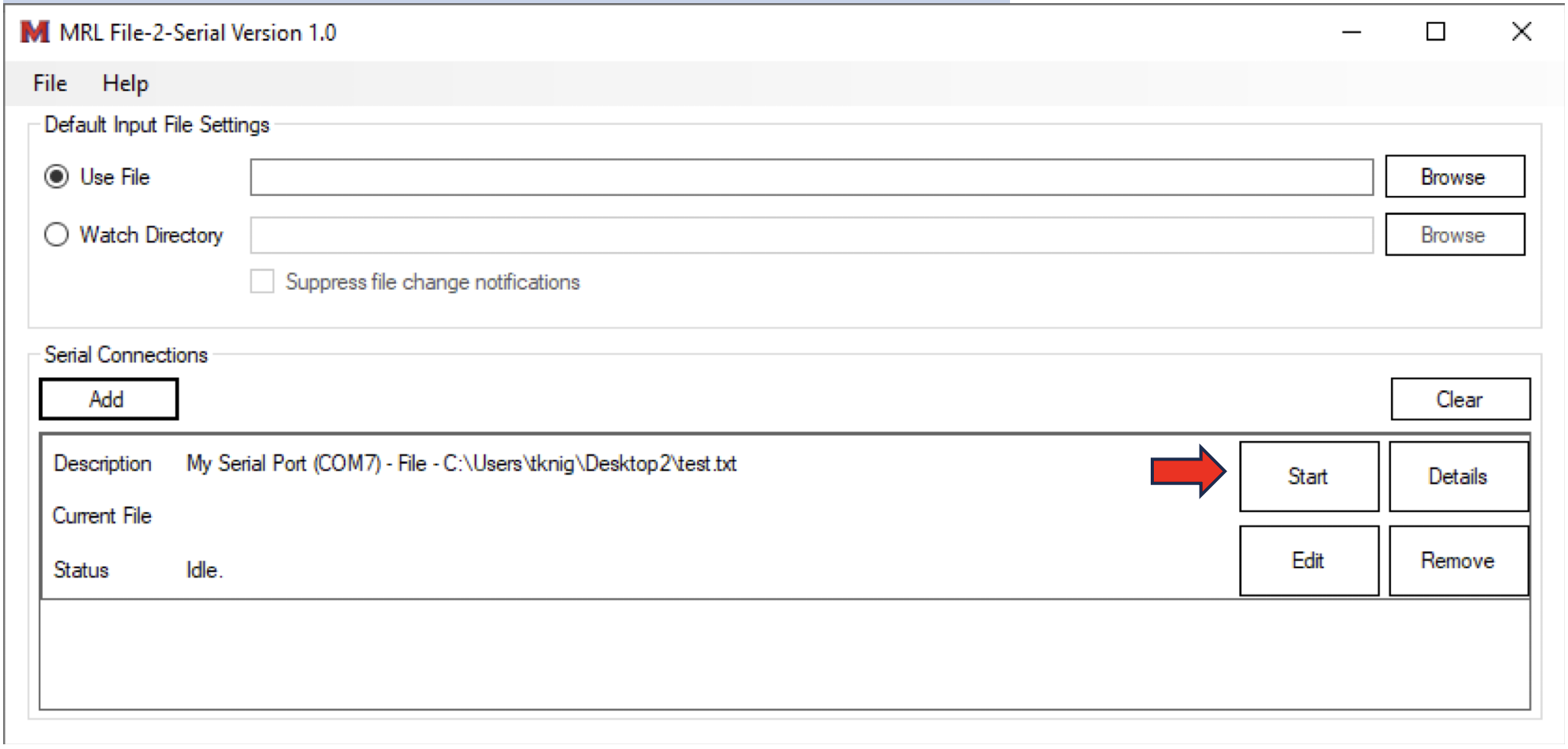

5. In the Serial Connections area of the window Click on Add.
6. Under Serial Connection Settings, open the Port dropdown to select the COM port on your laptop.
7. Under Serial Connection Settings, open the Baud Rate dropdown to select the baud rate for the data transmission.
8. In the Serial Connections area of the window, Click on the Start box.
9. Open the DataLogger software.
10. Setup your job as normal and be sure to save the file to the same folder you selected in the File2Serial program.
11. Click Start Logging and pump job.
