Rolligon

Created by Jacob Kariampally, Modified on Wed, Dec 4, 2024 at 7:04 PM by Daniel Castro

Pumpdown Data Acquisition - Rolligon

Hardware Setup

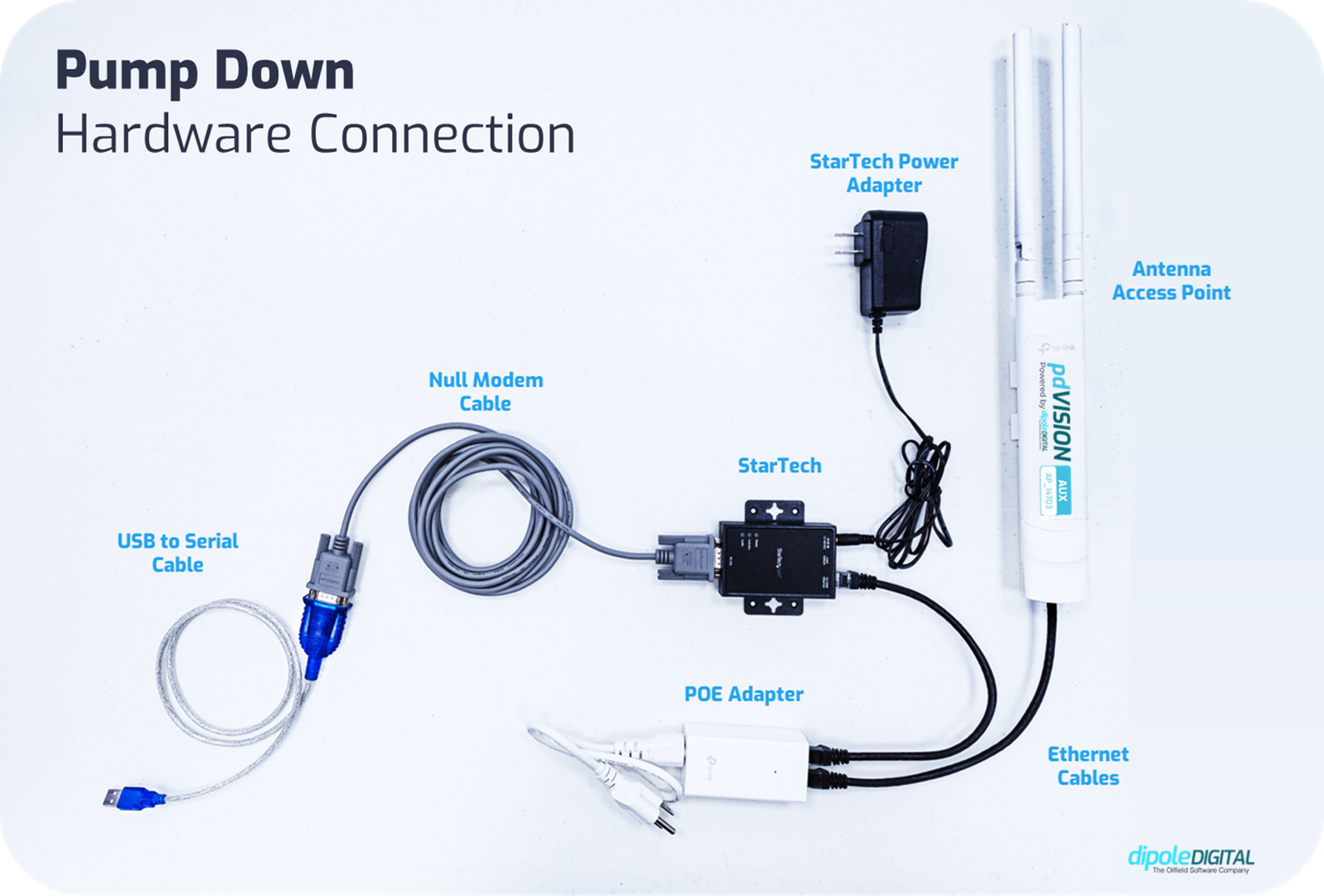

  1. Connect Hardware Components:

    • USB to Serial Cable: Connect this to the pumpdown laptop.
    • Gray Null Modem Cable: Connect one end to the USB to Serial cable.
    • Black Startech Serial to Ethernet Adapter: Connect to the Null Modem cable and plug into power.
    • Access Point:
      • Connect one Ethernet cable from Startech to the LAN port on the power adapter.
      • Connect another Ethernet cable from Access Point to the POE port on the power adapter.
      • Position the Access Point facing the logger’s access point for optimal connectivity.
  2. Check COM Port for USB to Serial Cable:

    • Open Device Manager > Ports and locate the USB to Serial cable (usually labeled as USB Prolific).
    • If COM port is not listed after plugging in, install the required drivers.

Pumpdown Laptop Configuration

  1. Open DAQ Settings:

    • Navigate to DAQ (top of screen) > Channel Setup.
  2. Configure Serial Output:

    • In Serial Output, select Choose an Output > Settings Button.Graphical user interface
Description automatically generated with low confidence
    • Set Port to the COM number identified in Device Manager (Step 2).
    • Configure other settings as follows:
      • Baud Rate: 9600
      • Parity: None
      • Stop Bits: One
      • Row Control: None
      • Delimiter: Comma
    • Press OK to save. Graphical user interface
Description automatically generated with low confidence
  3. Select Channels:

    • In Serial Output > Channels Button, choose channels for pressure and rate (e.g., DAS Pressure 1, DAS Rate 1, DAS Rate 2), then click OK.
    • Press OK in the Source Setup window.
    • Verify Blinking TX/RX Lights on the Startech Serial to Ethernet Adapter, indicating data transmission.A picture containing text, indoor, screenshot, computer
Description automatically generated

MaticAI/ZipVision Computer Setup

  1. Verify Access Point Connection:

    • Confirm the access point connection and hardware visibility.
    • In a browser, go to 10.0.0.2.
    • If connection fails: Open https://localhost:8043 and check Devices. You should see at least one logger access point as Connected.
      • If needed, adopt or reposition the access point for better visibility.
  2. Configure Dipole Pump Plugin:

    • Open the Dipole Pump Plugin.
    • Go to TCP IP Config(bottom left) and enter:
      • Host IP: 10.0.0.2
      • Port: 90
    • Press Start Receiving and check for incoming values in text boxes.
  3. Assign Values in Dipole Pump Plugin:

    • With values incoming, a table in the bottom right should display Index | Value.
    • If the table is not separated, enter a comma in the Division Character field (bottom right).
    • Match each index numberto the correct field:
      • Pressure (e.g., if Index 1): Enter 1 in the pressure field under Pump 1.
      • Rate (e.g., if Index 2): Enter 2 in the rate field under Pump 1.
    • Values for pressure and rate should now appear in MaticAI/ZipVision.

Safety Note: Ensure all connections are secure and drivers are correctly installedto avoid configuration issues. Confirm access point placement for optimal connectivity.
