IntuiTrack Ligth MPC

Created by David García-Ibañez, Modified on Wed, Aug 27 at 4:13 PM by David García-Ibañez

1. The setup is done on the right window

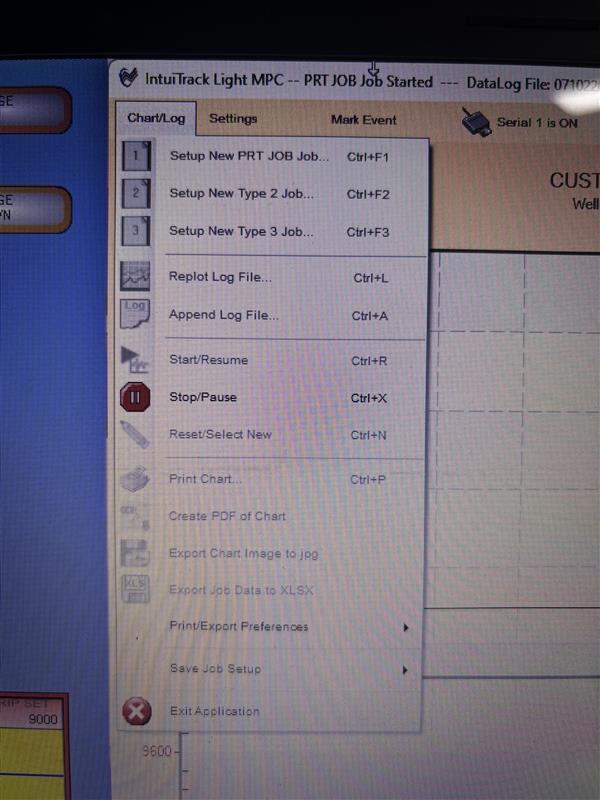

2. Go to the Menu and click on "Chart/Log" then click on "Setup New PRT JOB Job..."

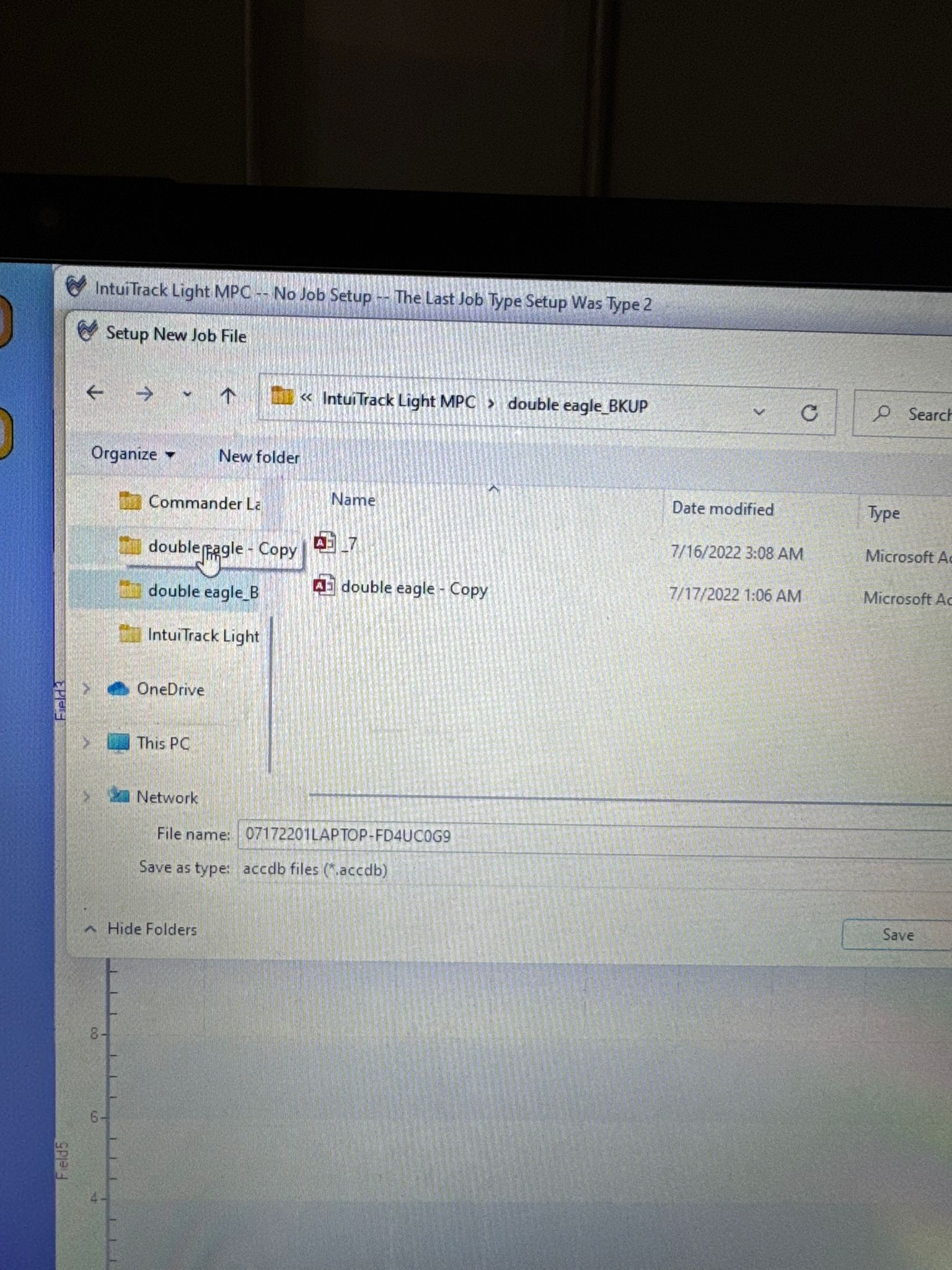

3. Give the job file any name, you can keep the one is given by defaul or just add a digit at the end of the name then click "Save"

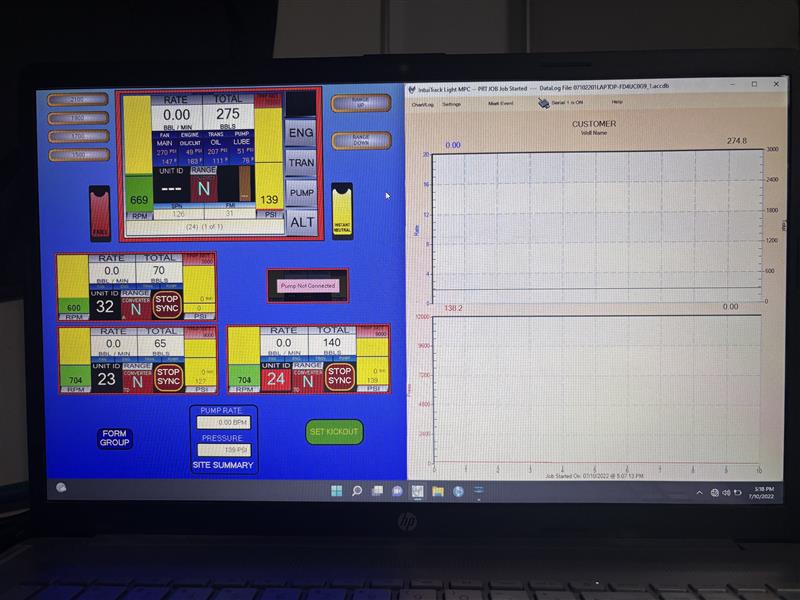

4. Click on "Start/Resume"

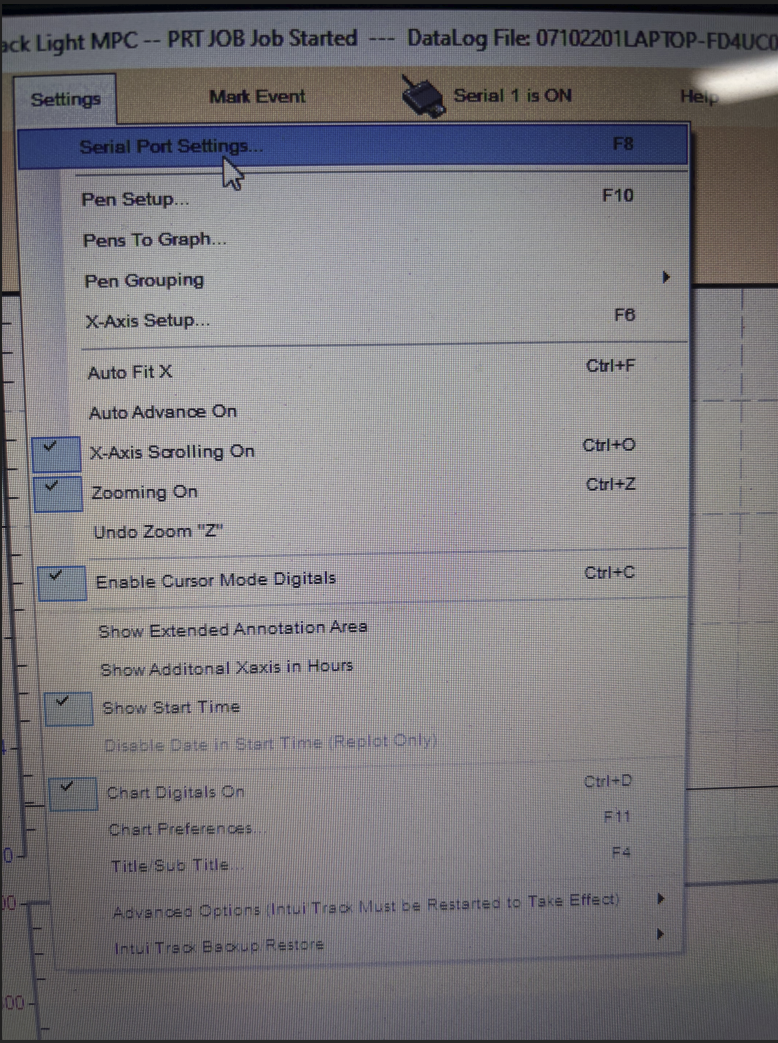

5. Go to "Settings" on the top Menu and click on "Serial Port Settings..."

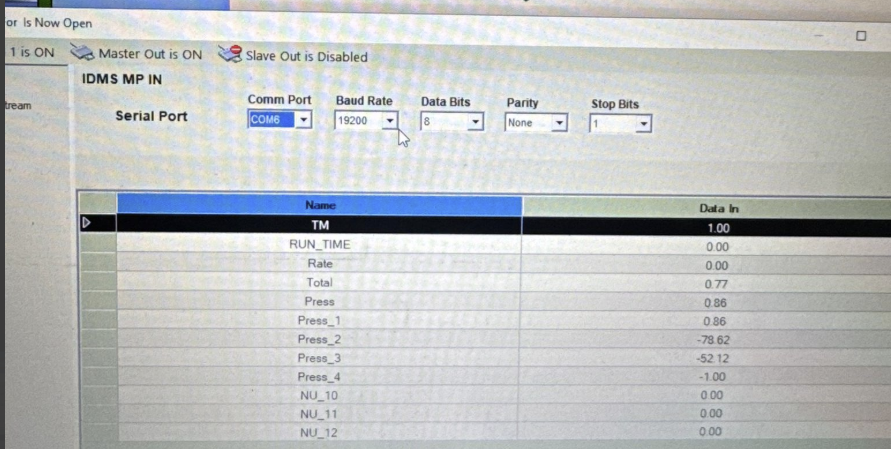

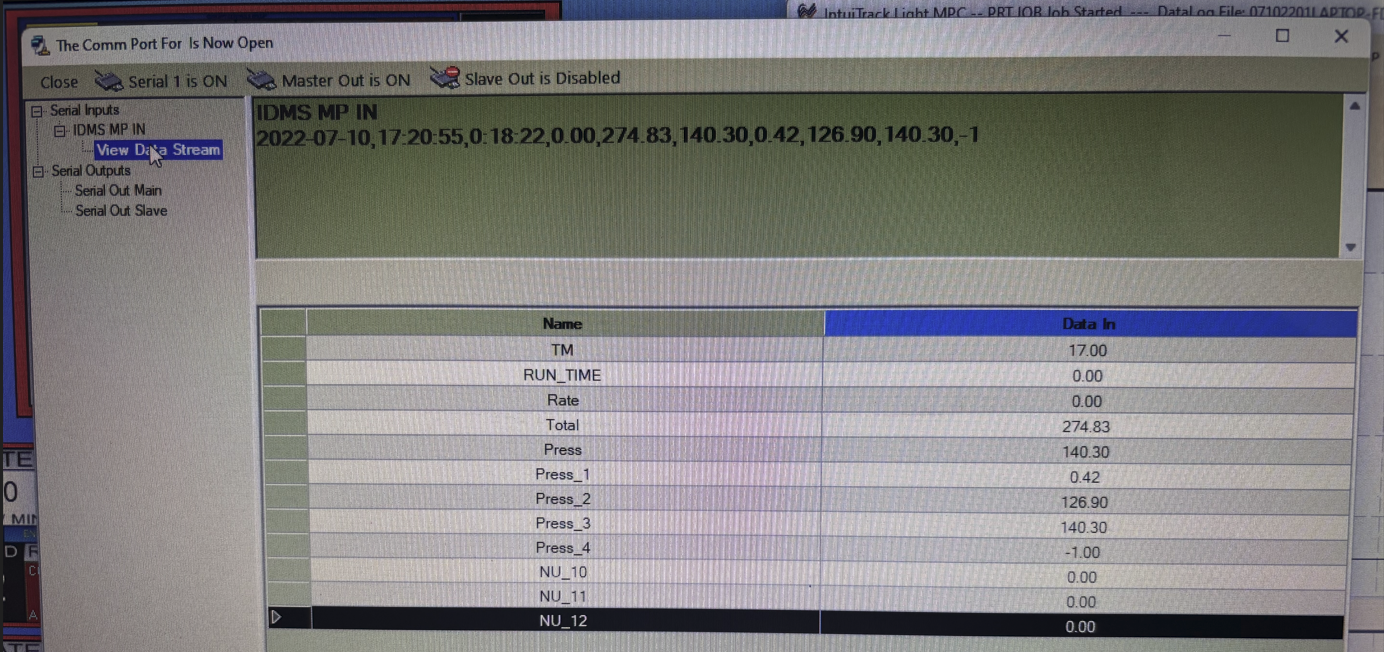

6. Confirm that your Serial Input configuration is correct and Click on "Serial 1 is OFF" at the top menu to turn it on.

If parameters are not being received the COM might me wrong.

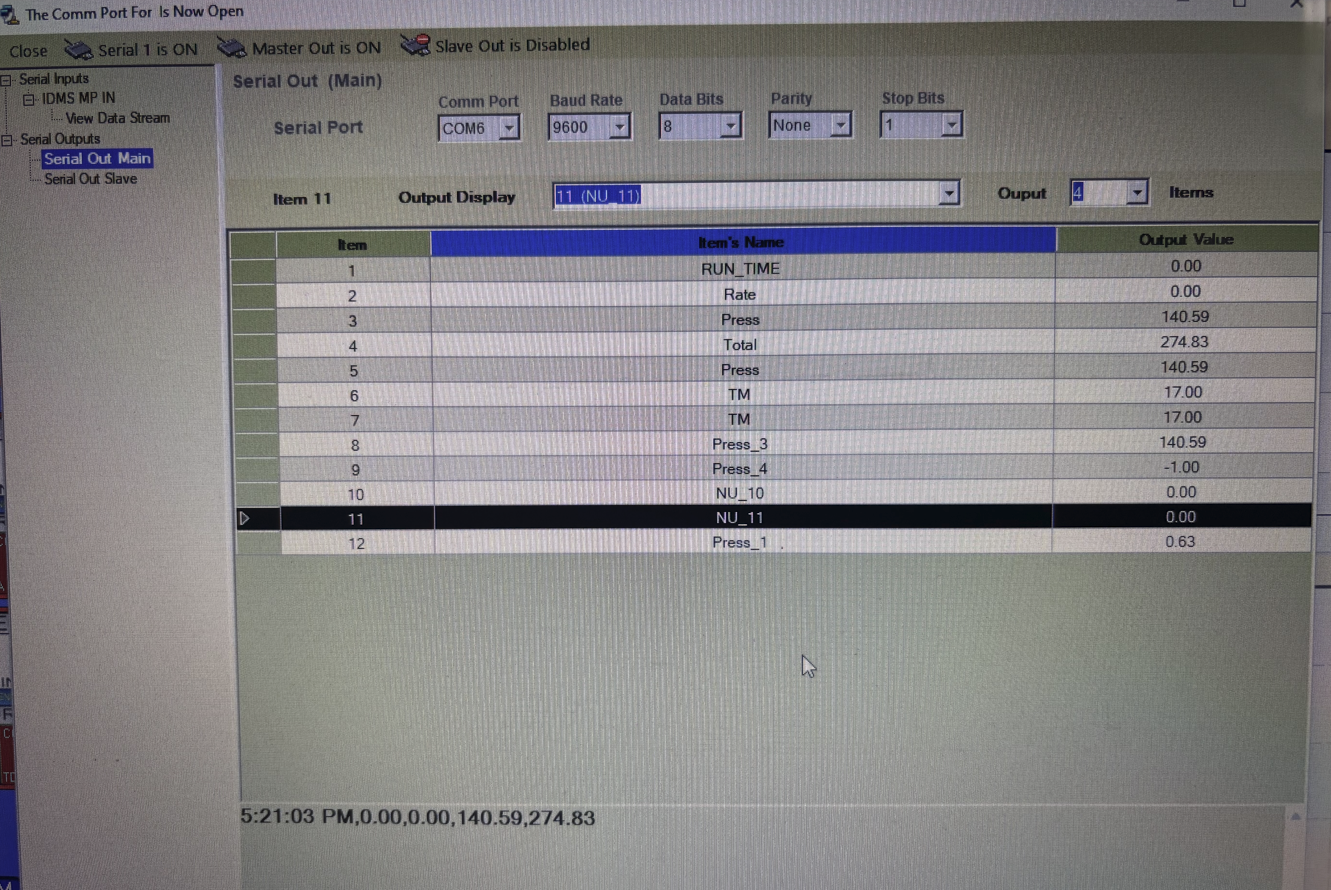

7. Confirm that your Serial Output configuration is correct and Click on "Master Out is OFF" at the top menu to turn it on. If data output is working you should see parameters on the "Output Value" column.
