Ghost Log Setup

1. After completing a run, you'll be prompted to load the ghost log for live review and shot plan comparison.

2. To set up the Ghost Log:

• Option 1: Go to the Setup Tab.

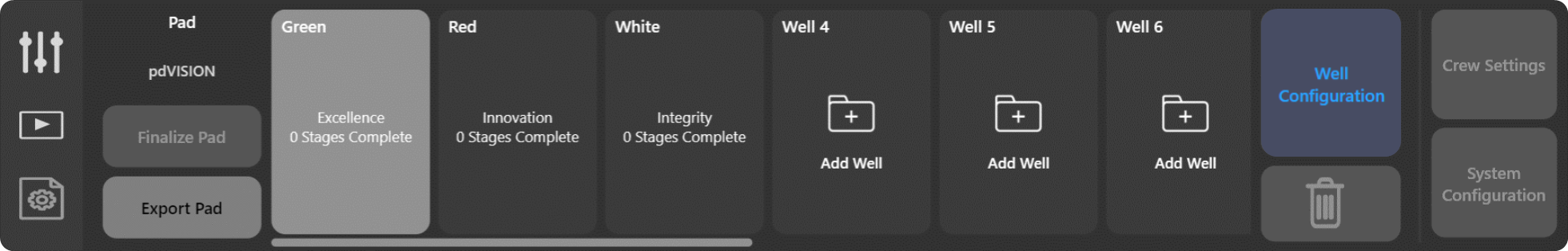

• Press the Well Configuration button

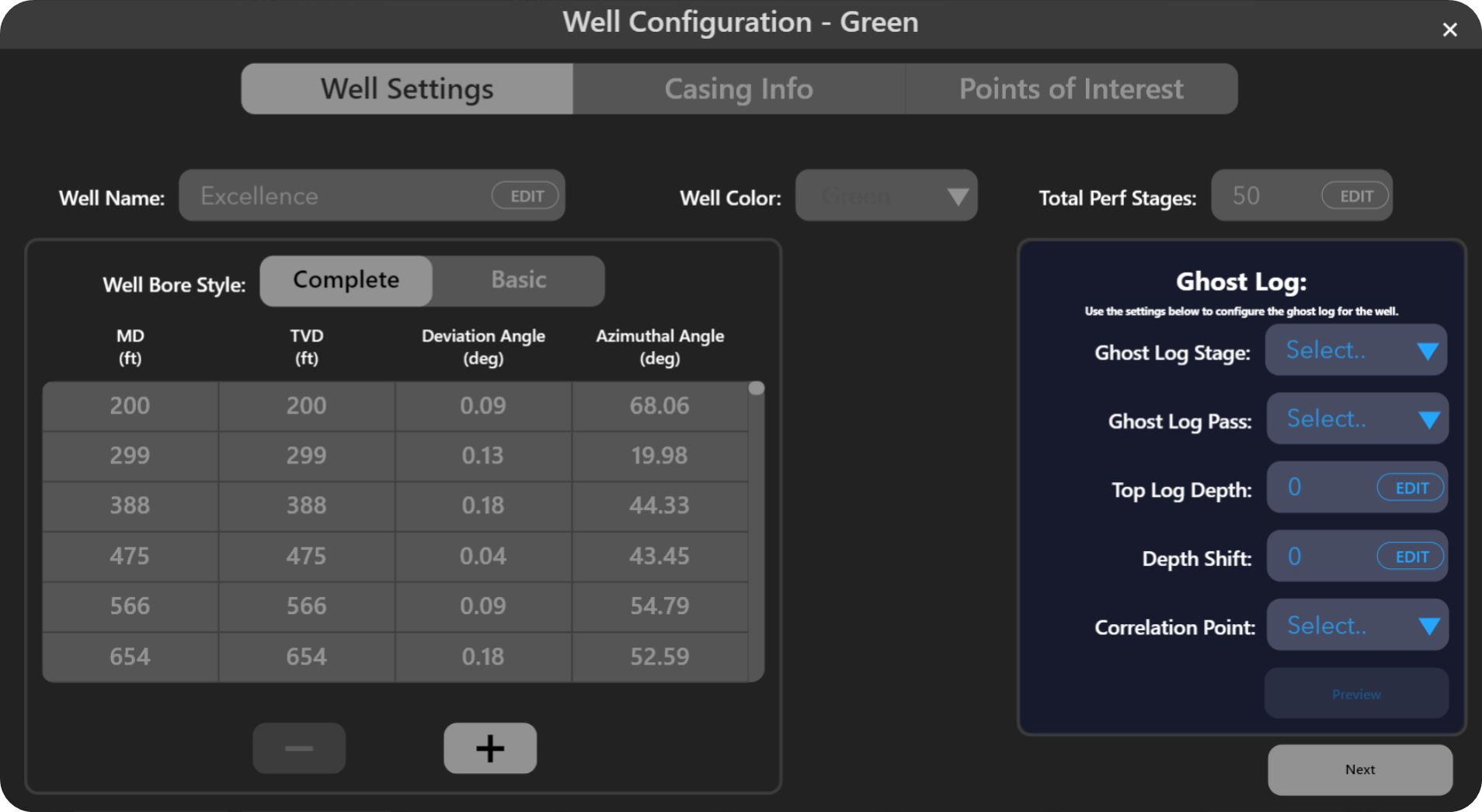

• Select the Ghost Log panel.


• Option 2: After finishing a stage, you will be prompted to load the ghost stage and log if it hasn’t been done yet.

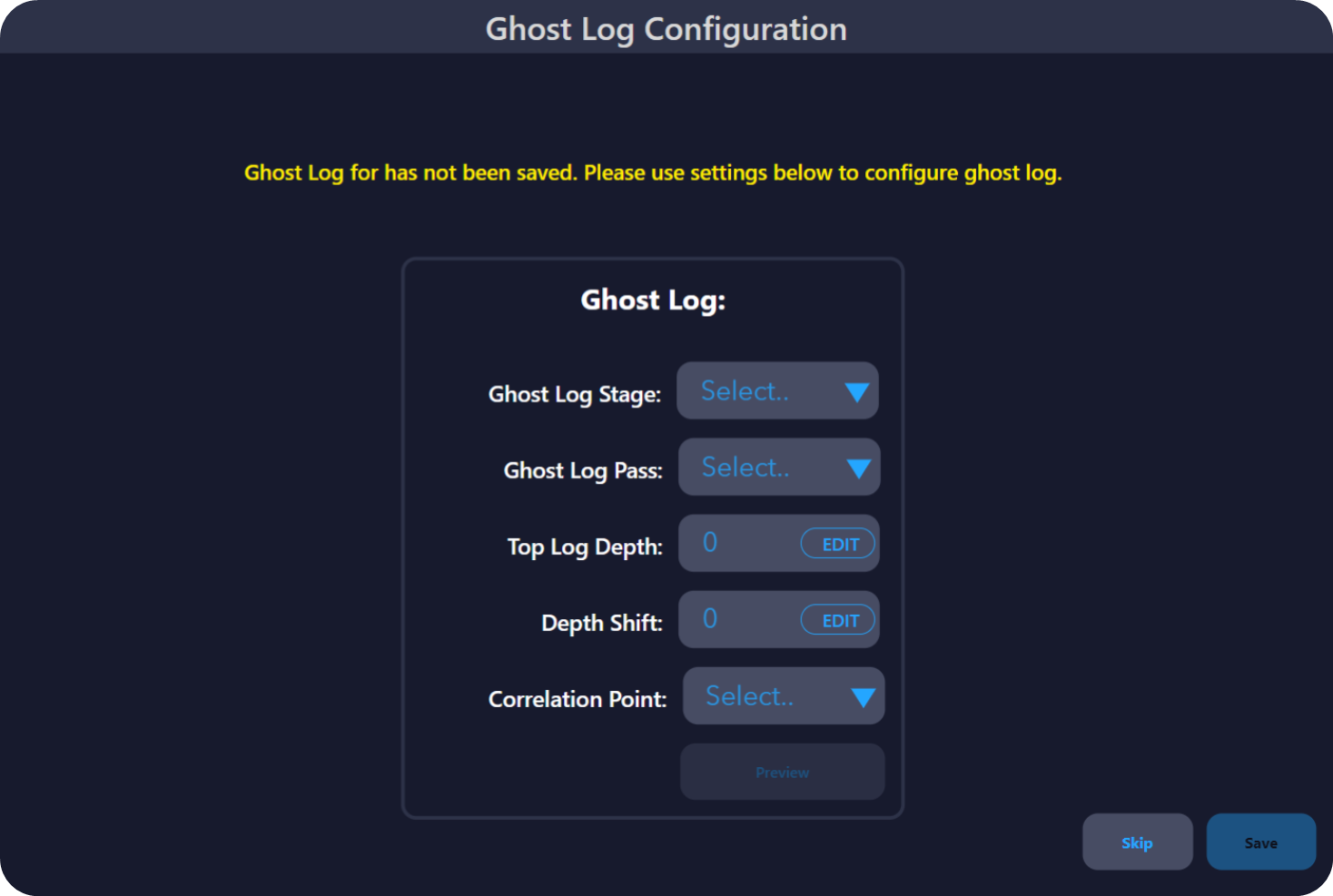

3. In the Ghost Log Setup Panel:

• Select the stage and pass from your logging pass to begin the setup.
  • I like the note but too much unneeded information. It is also going to be difficult to update text entered as imagesUse the following:
    • In pdVISION, our Pass is determined by changes in direction. This means it will typically be different than the pass recorded in Warrior. Identify the depth bounds and direction to match the pass required.
• Select the Correlation Point from the drop down list.
  • This list comes from the Points of Interest set on the Well Configuration.

4. Ghost Preview:

• Use the Ghost Preview to evaluate the CCL log at a specific Point of Interest (POI).
• Adjust the depth shift based on the POI as needed using the arrows.


5. Top Log Depth Value:

• Set the starting point for the ghost log overlay by adjusting the top log depth value.

Note: Make sure to adjust the depth shift carefully to ensure accurate comparisons.
