pdVISION Warrior Integration - Sermon Settings Check

1. Symptom Check:

   • If depth and wireline (WL) values drop to 0 when stopped, it's likely that the Sermon settings in Warrior were changed.

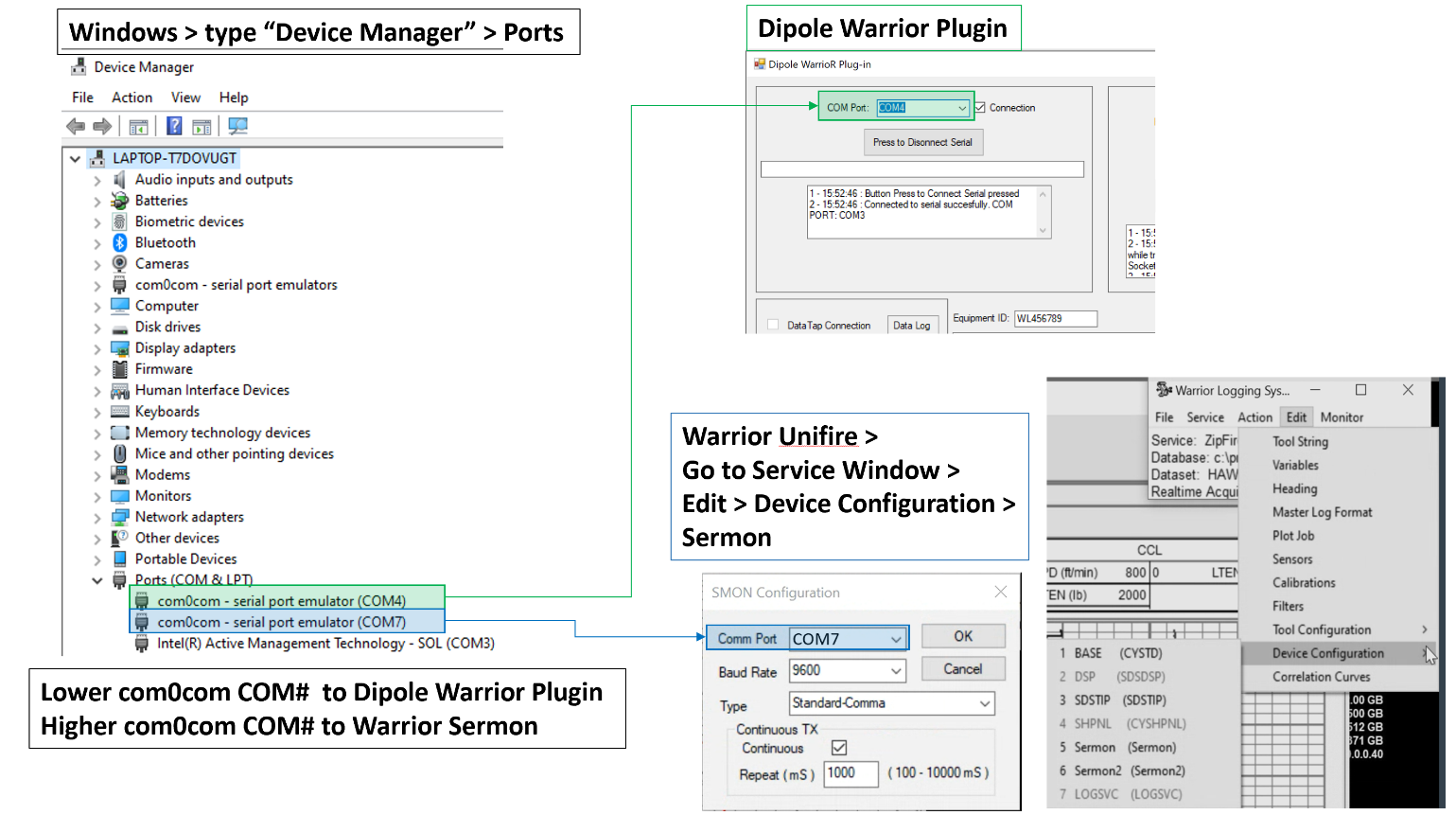

2. Access Device Manager:

   • On the Warrior computer, go to the Windows Start menu.
   • Type Device Manager and open it.

3. Locate COM Ports:

   • In Device Manager, navigate to Ports (COM & LPT).
   • Make a note of the COM ports listed under com0com (e.g., COM4, COM7).

4. Verify Warrior Sermon Device Settings:

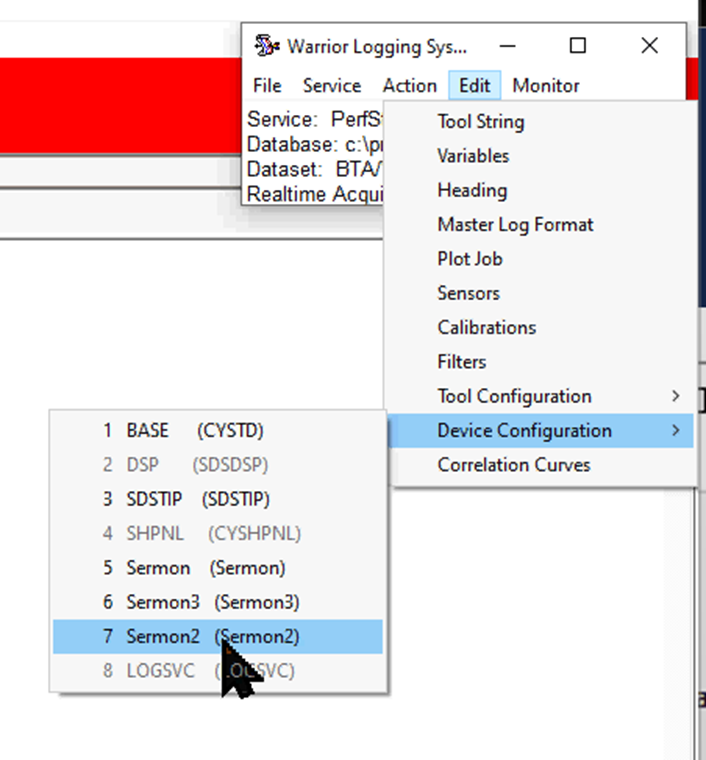

   • In Warrior/Unifire’s Acquisition Window, go to Edit > Device Configuration > Sermon.
   • If one Sermon deviceis listed:
     • Ensure the COM port matches the higher com0com port noted earlier (e.g., COM7).
     • If it’s set to COM1 (placeholder), change it to the higher com0com port (e.g., COM7).
   • If multiple Sermon devicesare listed:
     • Check each one and verify that none are set to unused or placeholder ports like COM1.
     • If needed, create an additional Sermon device (up to a maximum of 3).

5. No Sermon Device?

   • If no Sermon device is listed, follow the steps to add a Sermon device in Warrior.

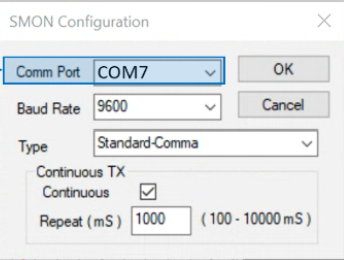

6. Verify Sermon Device Settings:

   • COM Port: Set to the higher com0com port (e.g., COM7).
   • Baud Rate: 9600 (default).
   • Type: Standard-Comma.
   • Continuous: Checked (default).
   • Repeat mS: 1000 (default).

7. Verify Dipole Warrior Plugin Settings:

   • Open the Dipole Warrior Plugin (from Windows > DipoleWarrior Plugin).
   • Ensure the COM port in the plugin matches the lower com0com port noted earlier (e.g., COM4).

Note: Incorrect COM port assignments can prevent accurate data acquisition. Always verify COM ports are set correctly to avoid issues with live data capture.
