Prime WSI

Prime WSI Setup

1. Connect Pumpdown Laptop to DipoleWellsite Network

To set up the data stream, connect the pumpdown laptop to the DipoleWellsite network using one of these methods:

• Wireless:

  • Connect to DipoleWellsite Wi-Fi using password DipoleDigitalWellsite (ensure laptop is within range of the logger).
  • If out of range, plug in an additional access point near the pumpdown operator.

• Wired:

  • Connect an Ethernet cable from the laptop to a spare port on the Edge Router (if working from inside the logger).

After connection:

1. Set a Static IP on the Pumpdown Laptop:

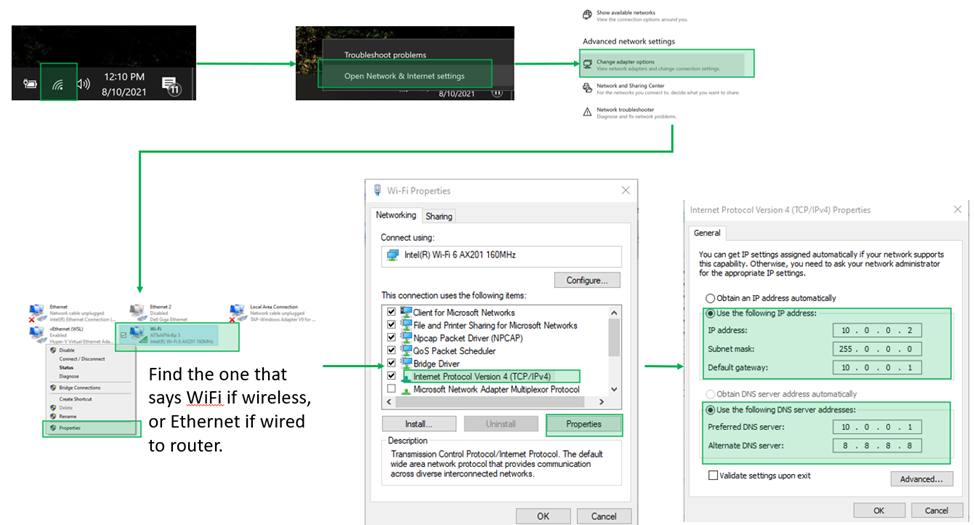

   • Right-click the Wi-Fi/Ethernet icon > Open Network & Internet Settings > Change adapter options.
   • Right-click Ethernet > Properties.
   • Select Internet Protocol Version 4 > Properties.
   • Enter the following settings:
     • IP Address: 10.0.0.2
     • Subnet mask: 255.0.0.0
     • Default gateway: 10.0.0.1
     • Preferred DNS: 10.0.0.1
     • Alternate DNS: 8.8.8.8
   • Click OK/Apply.

2. Disable Windows Updates (recommended):

   • Open the Services app from the Start menu.
   • Scroll to Windows Updates, right-click, select Properties.
   • Set Startup Type to Disabled.

2. Data Sender Configuration in PRIME WSI

To send data to ZipVision, set up Data Sender in PRIME WSI as follows:

1. Open Data Sender:

   • In the main menu of PRIME WSI, open Data Sender to configure data transmission.

2. Select Channels:

   • In Data Sender, select a job by pressing the dropdown (ˇ).

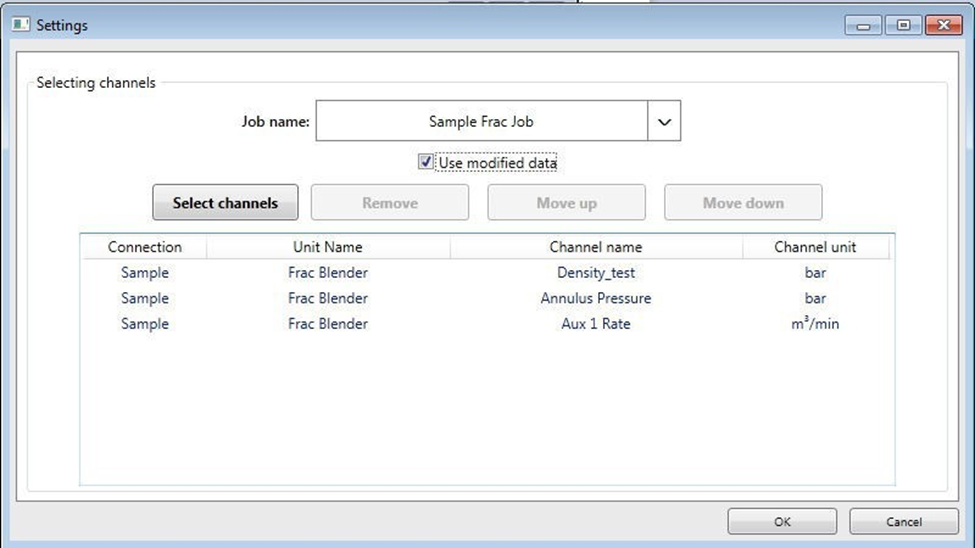

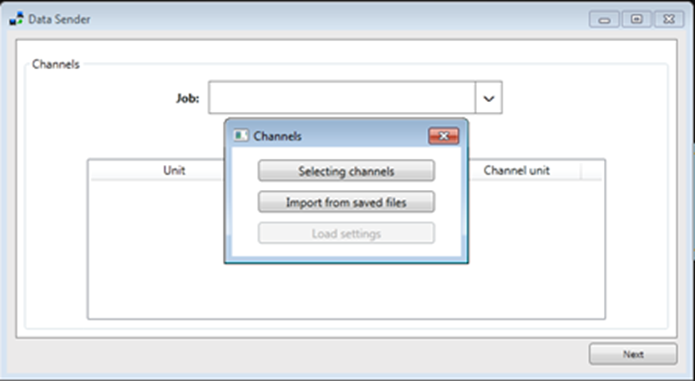

   • Click Select Channels in the main window, choose pressure and rate channels for ZipVision, then click OK and Next.

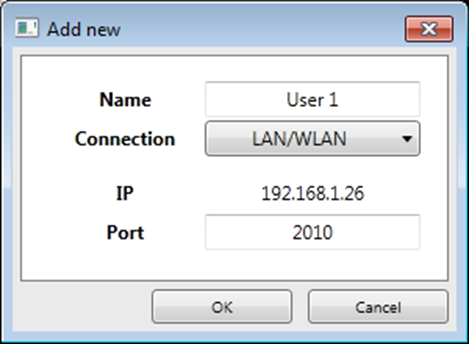

3. Add New Connection:

   • Configure the connection by entering a name, choosing LAN/WLAN as the type, setting the IP to 10.0.0.2, and specifying Port 90.
   • Click OK to save the connection.

4. Manage Connections:

   • View the connection in the main window.
   • You may Add new connections, modify the Channel list, Save settings for future use, or Export the channel list for reloading.

5. Adjust Settings:

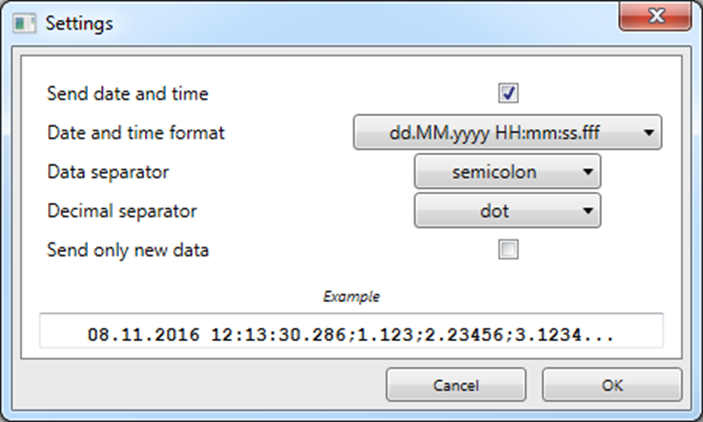

   • Click Settingsand configure as follows:
     • Send date and time: Checked
     • Data separator: Comma
     • Decimal separator: Dot
     • Send only new data: Checked

6. Start Transmission:

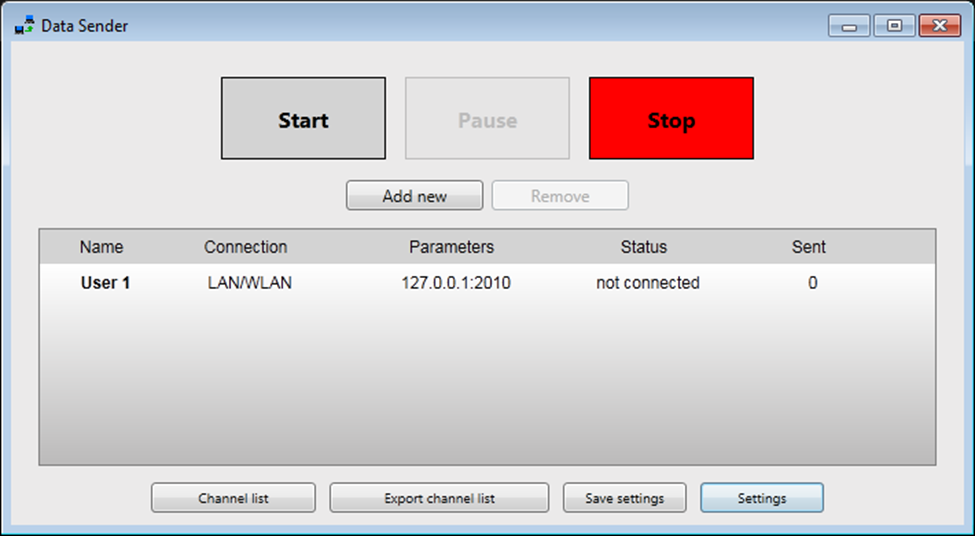

   • Click Start to begin sending data.
   • Use Stop or Pause as needed.

3. Configure Dipole Pump Plugin and Validate Data Stream

1. Open Dipole Pump Plugin:

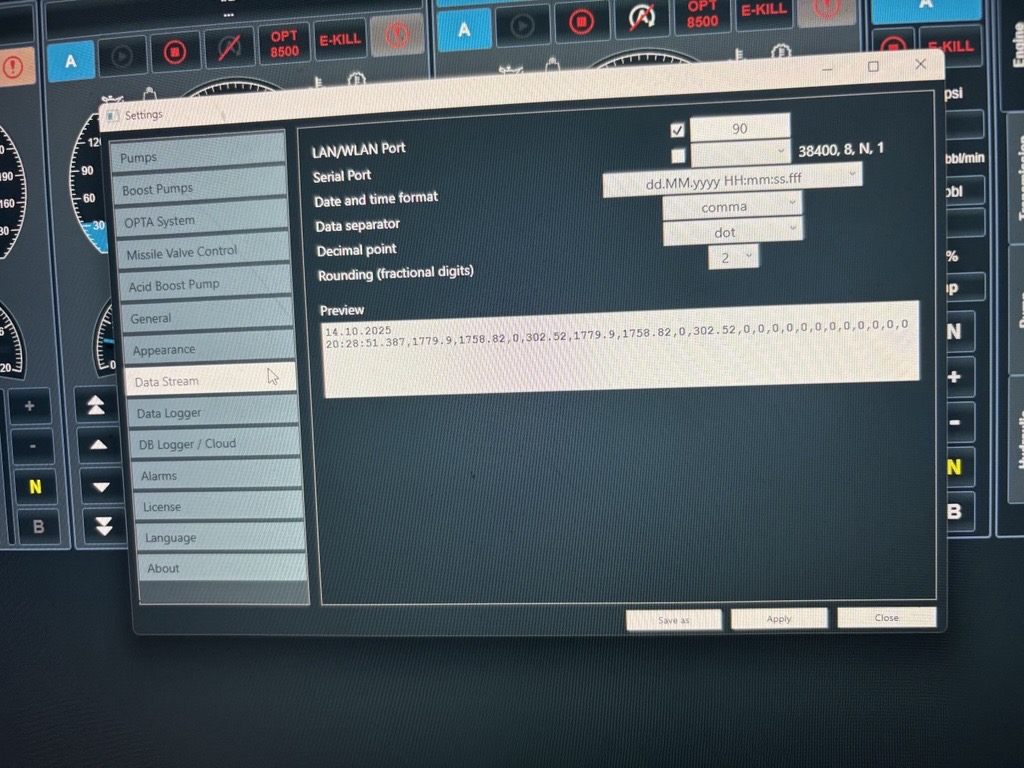

   • On the ZipVision computer, open Dipole Pump Plugin and check that Host IP is set to 10.0.0.2, Port 90 (these should match the output settings from pumpdown).

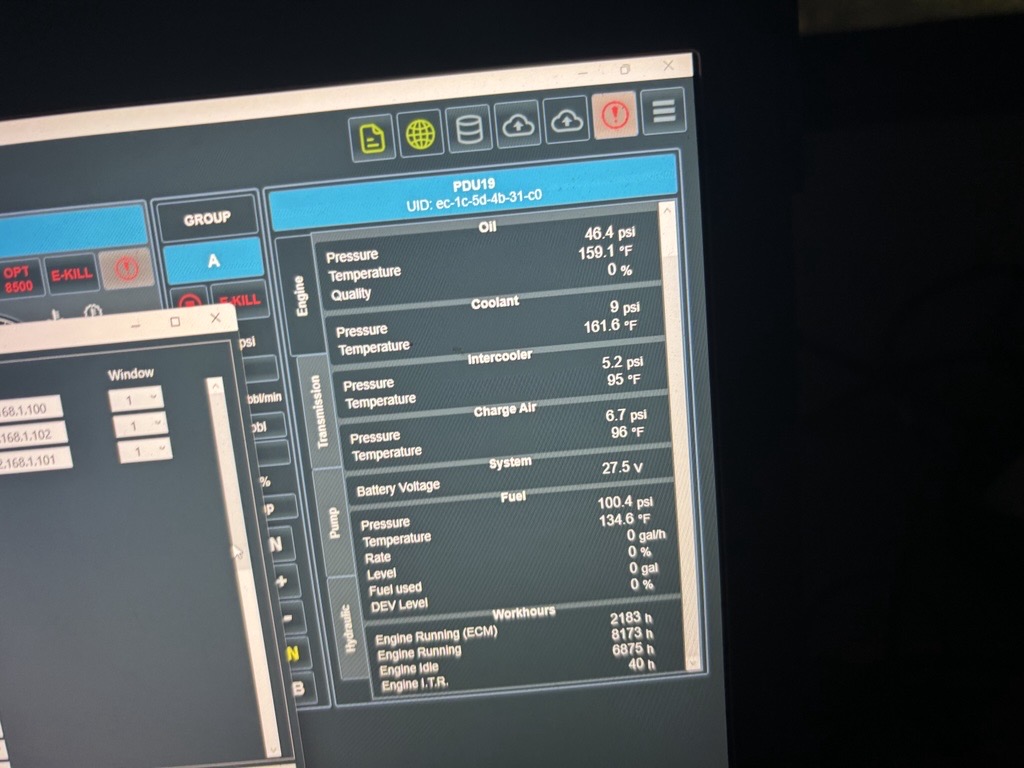

2. Validate Data Stream:

   • Confirm that data is streaming by viewing the far-right table, which shows the values being received and their index.

3. Assign Parameters:

   • Input the correct index numbernext to each desired pump parameter:
     • For example, if Index 1 corresponds to pressure, enter 1 beside the pump 1 pressure cell to link real-time values to the pump 1 pressure parameter.
